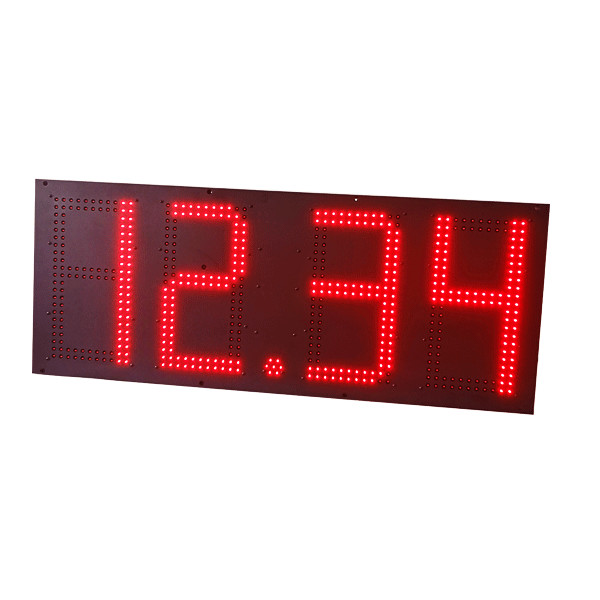

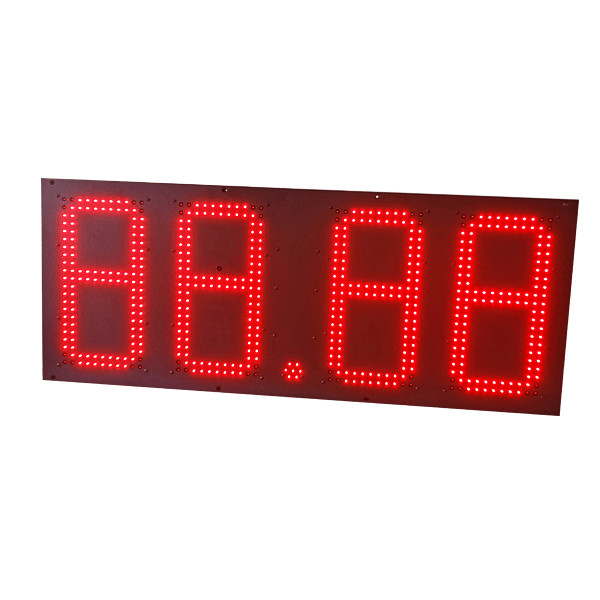

1400*650mm 7 Segment Red LED Price Board Custom Gas Station Price Board
| Place of Origin | SAHNDONG QINGDAO |
|---|---|
| Brand Name | autodisp |
| Model Number | S2-R560-88.88 |
| Minimum Order Quantity | 1 |
| Price | USD169~160piece |
| Packaging Details | Cardboard boxes |
| Delivery Time | 15 working days |
| Payment Terms | T/T |
| Supply Ability | 500 pieces per month |
Product Details
| Usage | Outdoor | Panel Size | 1400*650 |
|---|---|---|---|
| Color | Red/Green/Yellow | Display Function | Gas Station Show Price |
| Brightness | Maximum Brightness >7000mcd | Warranty | 3 Years |
| Material | Powder Coating Of Aluminium Sheets | Operation | Remote Control |
| Digital Format | 888.8 | Power Supply | DC 24v |
| Protection Level | IP65 | ||
| High Light | 7 Segment Red LED Price Board,1400mm LED Price Board,650mm Custom Gas Station Price Board |
||
Product Description
Custom led price sign gas station price board with Segment Display 7 Segment LED Red Color
Quick Detail:
IP-value housing:IP65
Angle:Horizontal≥80°,Vertical≥40°
Color:Red, yellow, green ,white
Voltage:DC24V
Unit thickness:25mm
Panel material:Aluminium, black powder coated
Display function:Gas station show price
Modules Protection:Glue sealing
Light:≥5000CD/㎡
Warranty:3 Years
Description:
Gas stations operators who want to stand out from the crowd have chosen QINGDAO AUTODISPLAY CO.,LTD LED gas price changers to improve their stations’ appearance and functionality.
AUTODISP’s signs are:
Brighter
Better Looking
Beautifully Crafted
Easy to Install
Easy to Service
Specifications:
| LED price unit | Specifications | System control | Specifications | Remote control | Specifications |
| IP-value housing | IP65 | IP-value housing | IP23 | Operating temperature | -15~50℃ |
| Angle | Horizontal≥80°,Vertical≥40° | Input voltage | 100~240VAC | Communication mode | 470M radio frequency communication |
| Voltage | DC24V | Output voltage | DC24V |
Operating model |
Numeric keyboard |
| Unit thickness | 25mm | Output power | 240W | Program Display | LCD |
| Panel material | Aluminium, black powder coated | Backlight control power | 3000W | Adjust the distance | Open area ≥ 300m,Blocking area≥30m. |
| LED current | Constant current Imax<20mA | Operating temperature | -30~60°℃ | Charging standby time | ≥3months |
| MTBF-factor | ≥20000H |
Control mode |
Remote control or Remote transmitter | Voltage | DC5V |
| Operating temperature | -30~60℃ | MTBF-factor | ≥20000H |
Charging port |
microUSB |
| Average power | 240 series <15W | Backlight control VPT | 100Lux |
|
Function:
-
Fully sealed core electronics, waterproof, sun-proof and strong heat dissipation
-
Modular design for easy installation and retrofitting
-
Use A-grade wide angle lamp beads, display brightness is 1.5 times that of the screen, lamp bead life of 100,000 hours
-
Ultra-thin and lightweight design for easy installation and maintenance
-
Support remote price adjustment, safe and convenient
Applications:
Some of the benefits of QINGDAO AUTODISPLAY CO.,LTD LED gas price changers:
Superior readability in any light condition
Comprehensive digit sizes, colors and fonts
Super light panel construction (Powder Coated Aluminum)
Durable design suitable for extreme weather use
Windowless panel design for increased visibility and heat dissipation
Plug-and-play design for simple and quick installation
Distributed Control Architecture for easy management and service
Fully encapsulated electronics for longer service life
Constant current driver design extends lamp bead life and effectiveness
