OEM ODM LED Gas Price Sign Remote Control Water Resistant 4 Digit Display Module

Place of Origin SAHNDONG QINGDAO
Brand Name autodisp
Model Number S2-W340-88.88
Minimum Order Quantity 1
Price USD163-160piece
Packaging Details Cardboard boxes
Delivery Time 15 working days
Payment Terms T/T
Supply Ability 500 pieces per month
Product Details
Usage Outdoor Panel Size 1100*420mm
Color White Brightness Maximum Brightness >7000mcd
Warranty 3 Years Material Powder Coating Of Aluminium Sheets
Operation Remote Control Digital Format 88.88
Power Supply DC 24v Protection Level IP65
High Light

ODM LED Gas Price Sign Remote Control

,

OEM LED Gas Price Sign Remote Control

,

Water Resistant 4 Digit Display Module

Leave a Message
Product Description

Waterproof Gas Station Price Sign Led Number Display Module Prices Board Digital Fuel Price Signs

Quick Detail:

IP-value housing:IP65

Angle:Horizontal≥80°,Vertical≥40°

Color:White

Voltage:DC24V

Unit thickness:25mm

Panel material:Aluminium, black powder coated

Display function:Gas station show price

Modules Protection:Glue sealing

Light:≥5000CD/㎡

Warranty:4Years

OEM ODM LED Gas Price Sign Remote Control Water Resistant 4 Digit Display Module 0

Description:

Aodi Digital Display has more than ten years of experience in the manufacturing of gas station price signs, with a professional design team, in terms of products we provide price signs diversified products, electronic series, mechanical series, large size, small size price signs, to meet the needs of different customers for price signs

Specifications:





LED price unit Specifications System control Specifications Remote control Specifications
IP-value housing IP65 IP-value housing IP23 Operating temperature -15~50℃
Angle Horizontal≥80°,Vertical≥40° Input voltage 100~240VAC Communication mode 470M radio frequency communication
Voltage DC24V Output voltage DC24V

Operating model

Numeric keyboard
Unit thickness 25mm Output power 240W Program Display LCD
Panel material Aluminium, black powder coated Backlight control power 3000W Adjust the distance Open area ≥ 300m,Blocking area≥30m.
LED current Constant current Imax<20mA Operating temperature -30~60°℃ Charging standby time ≥3months
MTBF-factor ≥20000H

Control mode

Remote control or Remote transmitter Voltage DC5V
Operating temperature -30~60℃ MTBF-factor ≥20000H

Charging port

microUSB

Average power 240 series <15W Backlight control VPT 100Lux





OEM ODM LED Gas Price Sign Remote Control Water Resistant 4 Digit Display Module 1

Function:

  • Fully sealed core electronics, waterproof, sun-proof and strong heat dissipation

  • Modular design for easy installation and retrofitting

  • Use A-grade wide angle lamp beads, display brightness is 1.5 times that of the screen, lamp bead life of 100,000 hours

  • Ultra-thin and lightweight design for easy installation and maintenance

  • Support remote price adjustment, safe and convenient

Features Include

  • Quality Aluminium enclosures

  • High brightness, even in direct sunlight

  • Easily updated

  • Easy to use Software with wireless capability

  • Low power consumption and maintenance costs

Applications:

We regularly survey our users and stay up to date with the latest trends and style. This is an effort we make in order to make sure the LED displays you use are both professional and contemporary to your target audience at all times. The majority of our clients say how they are stuck with a specific size and location. You will be happy to know the LED display boards we design can be customized to fit any dimension and location. Feel free to contact us, and we will work with you to produce the exact size you need or want. Besides the traditional look and feel, we can customize the overall casing as well. In order to fascinate your audience, you require a system to catch their interest and thoughts, and the LED boards we design for you will achieve just that.





OEM ODM LED Gas Price Sign Remote Control Water Resistant 4 Digit Display Module 2

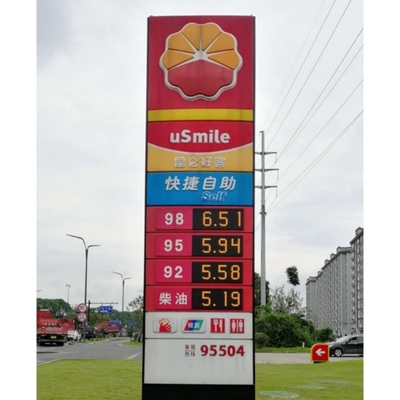

We understand the Price Sign is an essential part of a Gas Station. A fully functional Gas Station Price Sign allows driving customers to know the Price of Gas when passing by the Gas Station Station. The Price is the first thing a driving customer sees before pulling up into the Station. If the sign is not functioning properly this can affect the Gas Station’s Fuel Volume Significantly.
