Petrol Station 7 Segment Digital Number Display Led Gas Price Signs
| Place of Origin | SAHNDONG QINGDAO |
|---|---|
| Brand Name | autodisp |
| Model Number | S2-G240-8.88 |
| Minimum Order Quantity | 1 |
| Price | USD166~175piece |
| Packaging Details | Cardboard boxes |
| Delivery Time | 15 working days |
| Payment Terms | T/T |
| Supply Ability | 500 pieces per month |
Product Details
| Model | S2-G240-8.88 | Use Environment | Outdoor |
|---|---|---|---|
| Size | 610*320mm | Color | Green |
| Display Function | Gas Station Show Price | Brightness | Maximum Brightness >7000mcd |
| Warranty | 3 Years | Material | Powder Coating Of Aluminium Sheets |
| Operation | Remote Control | Digital Format | 8.88 |
| Power Supply | DC 24v | Protection Level | IP65 |
| High Light | 7 Segment Digital Number Display,Petrol Station Digital Number Display,8.88 Led Gas Price Signs |
||
Product Description
FPetrol Station 7 Segment Digital Number Led Gas Price Display Signs
Quick Detail:
IP-value housing:IP65
Angle:Horizontal≥80°,Vertical≥40°
Color:Red, yellow, green ,white
Voltage:DC24V
Unit thickness:25mm
Panel material:Aluminium, black powder coated
Display function:Gas station show price
Modules Protection:Glue sealing
Light:≥5000CD/㎡
Warranty:3 Years
Description:
LED price tag is currently the mainstream way for gas station price display, and its clear and eye-catching visual effect has been fully recognized by the international market. Our products adopt the whole sealant waterproof technology, outdoor performance is excellent. Low power consumption and constant current technology are introduced to greatly reduce the failure rate, improve the service life of the product, and ensure the all-weather operation of the product.
Specifications:
| LED price unit | Specifications | System control | Specifications | Remote control | Specifications |
| IP-value housing | IP65 | IP-value housing | IP23 | Operating temperature | -15~50℃ |
| Angle | Horizontal≥80°,Vertical≥40° | Input voltage | 100~240VAC | Communication mode | 470M radio frequency communication |
| Voltage | DC24V | Output voltage | DC24V |
Operating model |
Numeric keyboard |
| Unit thickness | 25mm | Output power | 240W | Program Display | LCD |
| Panel material | Aluminium, black powder coated | Backlight control power | 3000W | Adjust the distance | Open area ≥ 300m,Blocking area≥30m. |
| LED current | Constant current Imax<20mA | Operating temperature | -30~60°℃ | Charging standby time | ≥3months |
| MTBF-factor | ≥20000H |
Control mode |
Remote control or Remote transmitter | Voltage | DC5V |
| Operating temperature | -30~60℃ | MTBF-factor | ≥20000H |
Charging port |
microUSB |
| Average power | 240 series <15W | Backlight control VPT | 100Lux |
|
Function:
-
Fully sealed core electronics, waterproof, sun-proof and strong heat dissipation
-
Modular design for easy installation and retrofitting
-
Use A-grade wide angle lamp beads, display brightness is 1.5 times that of the screen, lamp bead life of 100,000 hours
-
Ultra-thin and lightweight design for easy installation and maintenance
-
Support remote price adjustment, safe and convenient
Applications:

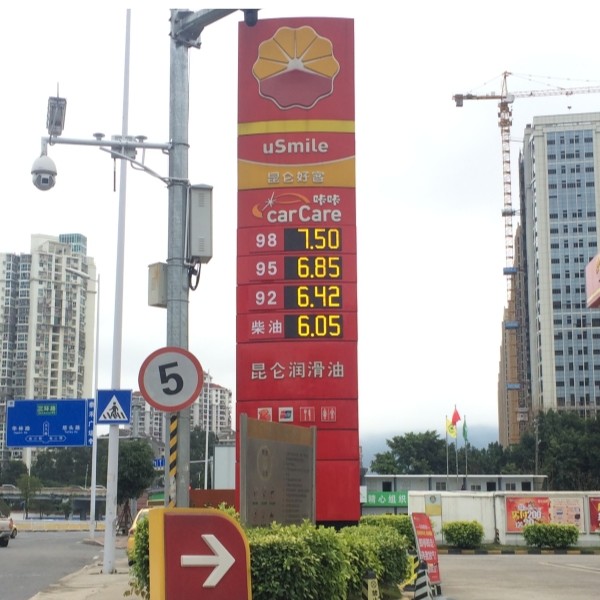

LED price board
It clearly displays the oil prices of various oils and automatically adjusts the brightness of the lamp beads according to the light intensity during the day, which truly saves energy and power.
Aodi digital LED price signs are specifically designed for the petroleum industry, with figures featuring high brightness to provide clear fuel prices. These displays feature energy efficient LED technology for excellent visibility and impressive viewing angles.LED price signs replace your interchangeable scribe board. Travelers can see the highly visible LED numbers from a great distance, while you can update fuel prices instantly via remote control
