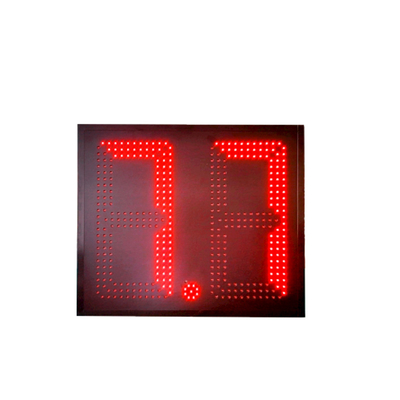

13 Inch RED LED Gas Price Changer 7 Segment Scoreboard Electronic Led Signs
| Place of Origin | SAHNDONG QINGDAO |
|---|---|
| Brand Name | autodisp |
| Model Number | D2-Y340-8.888 |
| Minimum Order Quantity | 1 |
| Price | USD243~235piece |
| Packaging Details | Cardboard boxes |
| Delivery Time | 15 working days |
| Payment Terms | T/T |
| Supply Ability | 500 pieces per month |
Product Details
| Usage | Outdoor | Panel Size | 1050*420*25mm（Customization Available） |
|---|---|---|---|
| Color | Yellow | Display Function | Gas Station Show Price |
| Brightness | Maximum Brightness >7000mcd | Warranty | 3 Years |
| Material | Powder Coating Of Aluminium Sheets | Operation | Remote Control |
| Digital Format | 8.888 | Power Supply | DC 24v |
| Protection Level | IP65 | ||
| High Light | 13Inch RED LED Gas Price Changer,LED Gas Price Changer 7 Segment,7 Segment Scoreboard Electronic Led Signs |
||
Product Description
13 Inch RED Color Gas Station Oil Price Changer 7 Segment Scoreboard Electronics LED Displays Factory Supplies
Specifications:
| LED price unit | Specifications | System control | Specifications | Remote control | Specifications |
| IP-value housing | IP65 | IP-value housing | IP23 | Operating temperature | -15~50℃ |
| Angle | Horizontal≥80°,Vertical≥40° | Input voltage | 100~240VAC | Communication mode | 470M radio frequency communication |
| Voltage | DC24V | Output voltage | DC24V | Operating model | Numeric keyboard |
| Unit thickness | 25mm | Output power | 240W | Program Display | LCD |
| Panel material | Aluminium, black powder coated | Backlight control power | 3000W | Adjust the distance | Open area ≥ 300m,Blocking area≥30m. |
| LED current | Constant current Imax<20mA | Operating temperature | -30~60°℃ | Charging standby time | ≥3months |
| MTBF-factor | ≥20000H | Control mode | Remote control or Remote transmitter | Voltage | DC5V |
| Operating temperature | -30~60℃ | MTBF-factor | ≥20000H | Charging port | microUSB |
| Average power | 240 series <15W | Backlight control VPT | 100Lux |
Quick Detail:
IP-value housing:IP65
Angle:Horizontal≥80°,Vertical≥40°
Color:RED
Voltage:DC24V
Unit thickness:40mm
Panel material:Aluminium, black powder coated
Display function:Gas station show price
Modules Protection:Glue sealing
Light:≥5000CD/㎡
Warranty:3 Years
Description:
Gas stations operators who want to stand out from the crowd have chosen QINGDAO AUTODISPLAY CO.,LTD LED gas price changers to improve their stations’ appearance and functionality.
AUTODISP’s signs are:
Brighter
Better Looking
Beautifully Crafted
Easy to Install
Easy to Service
.
Function:
-
Fully sealed core electronics, waterproof, sun-proof and strong heat dissipation
-
Modular design for easy installation and retrofitting
-
Use A-grade wide angle lamp beads, display brightness is 1.5 times that of the screen, lamp bead life of 100,000 hours
-
Ultra-thin and lightweight design for easy installation and maintenance
-
Support remote price adjustment, safe and convenient

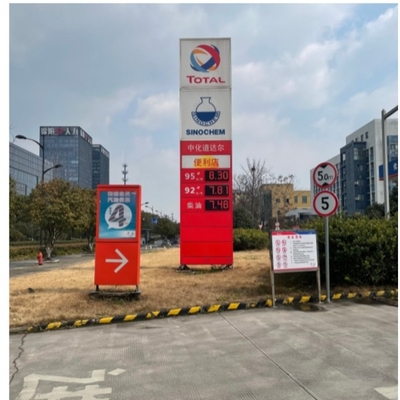

Applications:
Network cable Connection
Connect a total of up to eight gas price changer displays to a single controller box! Sub-control can be added to increase the number of gas price changer displays .Product protection IP65, making it possible to mount inside or outside of the cabinet.
