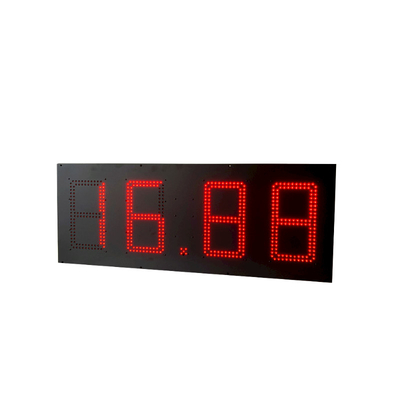

7 Segment IP65 LED Gas Price Signs Outdoor Gas Price Digital Sign
| Place of Origin | SAHNDONG QINGDAO |
|---|---|
| Brand Name | autodisp |
| Model Number | D2-W170-8.88 |
| Minimum Order Quantity | 1 |
| Price | USD107~103piece |
| Packaging Details | Cardboard boxes |
| Delivery Time | 15 working days |
| Payment Terms | T/T |
| Supply Ability | 500 pieces per month |
Product Details
| Model | D2-W170-8.88 | Panel Size | 520*220*25mm（Customization Available） |
|---|---|---|---|
| Color | White | Brightness | Maximum Brightness >7000mcd |
| Warranty | 3 Years | Material | Powder Coating Of Aluminium Sheets |
| Operation | Remote Control | Power Supply | DC 24v |
| Protection Level | IP65 | Viewing Angle | 110° Horizontally, 55° Vertically |
| High Light | IP65 LED Gas Price Signs Outdoor,autodisp LED Gas Price Signs Outdoor,7 Segment digital gas price sign |
||
Product Description
LED Gas Price Signs 7 Segment IP65 Outdoor Use Led Gas Price Digital Sign Gas Station Price Signs
Description:
Interesting facts about LED gas price signs
With constantly fluctuating gas prices, it is very important that you keep your gas price sign up-to-date. Stop wasting time with traditional message boards that require an employee to change the sign by hand. Instead, invest in an LED gas price sign and make the updating process much faster and easier. You can make price adjustments remotely via the remote control.
LED gas price signs have much less power consumption and a longer lifespan compared to competing signage forms. Therefore, there is added cost effectiveness with LED signs. Although the initial investment may be high, you will have a highly effective ROI throughout the lifespan of an electronic message board.
Quick Detail:
LED Digital Gas Price Sign :170mm Character Height
Viewing angle:110° horizontally, 55° vertically
Control system :(controller, remote control, Meanwell power supply)
Configuration:8.88
IP-value housing:IP65
Angle:Horizontal≥80°,Vertical≥40°
Color:White
Voltage:DC24V
Unit thickness:25mm
Panel material:Aluminium, black powder coated
Display function:Gas station show price
Modules Protection:Glue sealing
Light:≥5000CD/㎡
Warranty:3 Years
Specifications:
| LED price unit | Specifications | System control | Specifications | Remote control | Specifications |
| IP-value housing | IP65 | IP-value housing | IP23 | Operating temperature | -15~50℃ |
| Angle | Horizontal≥80°,Vertical≥40° | Input voltage | 100~240VAC | Communication mode | 470M radio frequency communication |
| Voltage | DC24V | Output voltage | DC24V |
Operating model |
Numeric keyboard |
| Unit thickness | 25mm | Output power | 240W | Program Display | LCD |
| Panel material | Aluminium, black powder coated | Backlight control power | 3000W | Adjust the distance | Open area ≥ 300m,Blocking area≥30m. |
| LED current | Constant current Imax<20mA | Operating temperature | -30~60°℃ | Charging standby time | ≥3months |
| MTBF-factor | ≥20000H |
Control mode |
Remote control or Remote transmitter | Voltage | DC5V |
| Operating temperature | -30~60℃ | MTBF-factor | ≥20000H |
Charging port |
microUSB |
| Average power | 240 series <15W | Backlight control VPT | 100Lux |
|
Function:
-
Fully sealed core electronics, waterproof, sun-proof and strong heat dissipation
-
Modular design for easy installation and retrofitting
-
Use A-grade wide angle lamp beads, display brightness is 1.5 times that of the screen, lamp bead life of 100,000 hours
- Target niche groups like families on a road trip or long-haul truckers
-
Showcasing ongoing promotions at petrol stations
- Display of oil prices at petrol stations
Applications:
LED price board
It clearly displays the oil prices of various oils and automatically adjusts the brightness of the lamp beads according to the light intensity during the day, which truly saves energy and power.
